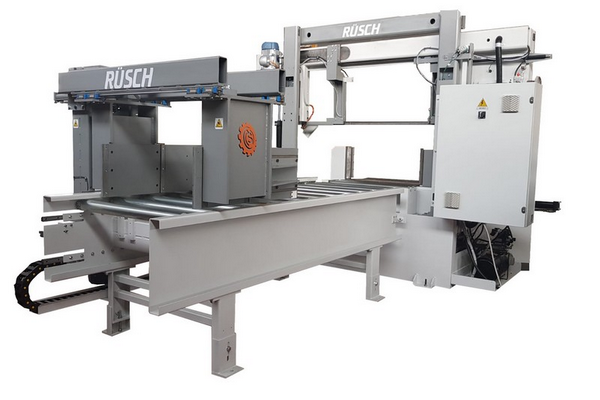

The Rüsch 600/800A 2000, is adouble coloumn bandsaw machine with the cutting capacity of 600H x 800 mm It has a feeding carriage of 2000mm. ( Optional 1000mm o 3000mm ). All movements are on linear bearings.

  • Machine stops if blade break
  • Vice pressure reducing valve. It avoids to damage thin walled tubes.
  • Hydraulic pump stops if machine is not used.
  • Powered blade brush.
  • Swarf conveyor included.
  • Optional spray mist coolant.
  • 2000mm feeding carriage.
TECHNICAL DATA
tecapton90  600 mm temotoil  1.5 kw
 tecapqua90  600 mm temoth2o 0.78 kw
 tecapret90  800 x 600h mm tepeso  3000 kg
tediamvolani 630 mm tedimensioni 3610 x 4250 x 2720H mm MAX.
teserbh2o 100 l tetensione 24 V – 400V
teserboil 25 l tedimlama 7150 x 41 x 1.3
 tevellama  20 – 120 m/min. http://www.rusch.eu/wp-content/uploads/2015/03/tealtbanco.png 800 mm
 temotlama   4 kw – 5 kw OPT.  tecolore  RAL 7035 – RAL 7037
