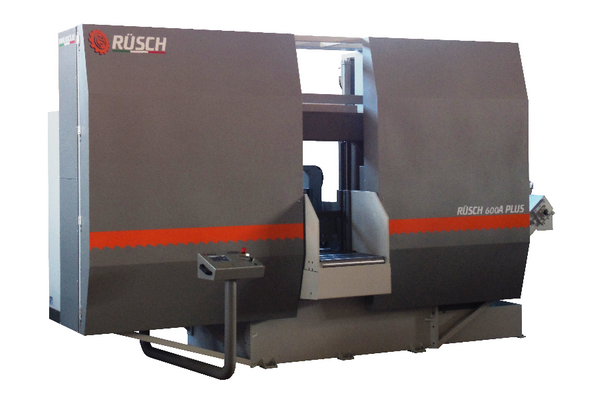

The Rüsch 600Aplus, is a 2 coloumns automatic bandsaw machine The feeding carriage and the saw head are acted by an electric motor and a ballscrew.

  • New advanced  RÜSCH CNC®.
  • Grafic touchscreen display 10″
  • AUTOSAW management of the cutting parameters. You only have to insert the material type shape and size.
  • Machine stops if blade broken.
  • The hydraulic pump is turned off is the machine is idle.
  • Blade deviation detector.
  • Steplessly blade speed change with a vector inverter.
  • Vise pressure regulation
  • Powered swarf conveyor
  • Screw type swarf conveyor with variable speed
  • Powered blade cleaning brush
  • Coolant tank inside the machine base
  • Blade downfeed and carriage feed actuated by ballscrew and electric motor
TECHNICAL DATA
tecapton90 600 mm tediamvolani 900 mm
 tecapqua90 600 mm temotlama 11 kw
 tecapret90 600 x 600h mm temotoil 3 kw
teminpacco 600 x 70h mm temoth2o 0.78 kw
temaxpacco 600 x 600h mm tepeso 6700 Kg
corsa carro 520 mm tedimensioni 4600 x 2300 x 2850h mm
rip corsa carro n° 99 tetensione 24 V – 400V
teserbh2o 150 l tedimlama 8800 x 67 x 1.6 mm
teserboil 75 l http://www.rusch.eu/wp-content/uploads/2015/03/tealtbanco.png 950 mm
tevellama 10 – 140 m/min. tecolore RAL 7035 – RAL 7037



Options:

  • Rollerbeds 1000mm 2000mm 3000mm
  • Plates between rolls kit for rollerbeds.
  • Coolant collector for rollerbeds.
  • Vertical rolls for rollerbeds.
  • Bundle vise.
  • Zero detect laser.
  • Spary mist.
