The Rüsch 600/800SA, is a twin coloumns semi-automatic bandsaw machine with capacity of 600h x800 mm. All movements are on linear bearings.

  • Machine stops in case of blade broken.

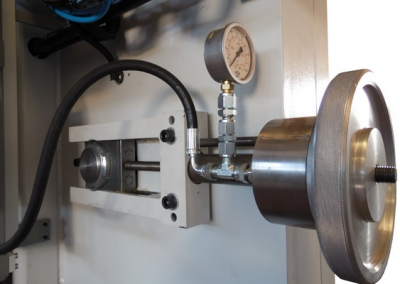

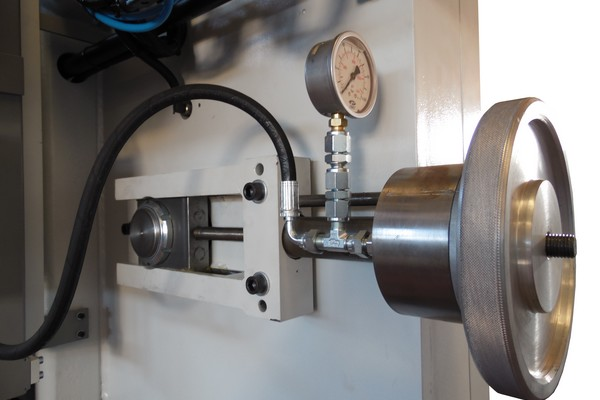

  • Vise pressure reducing valves (Avoid to damage thin walled tubes).
  • Saw head can return over the piece after the cut or stay down.
  • Hydraulic pump stops if not in use.
  • Powered blade brush.
  • Swarf conveyor.
  • Spray mist coolant in option.
TECHNICAL DATA
tecapton90  600 mm temotoil  1.5 kw
 tecapqua90  600 mm temoth2o 0.78 kw
 tecapret90  800 x 600h mm tepeso  3000 kg
tediamvolani 630 mm tedimensioni 3700 x 2130 x 2450h mm
teserbh2o 100 l tetensione 24 V – 400V
teserboil 25 l tedimlama 7150 x 41 x 1.3 mm
 tevellama  20 – 120 m/min. http://www.rusch.eu/wp-content/uploads/2015/03/tealtbanco.png 800 mm
 temotlama   4 kw – 5 kw OPT.  tecolore  RAL 7035 – RAL 7037
