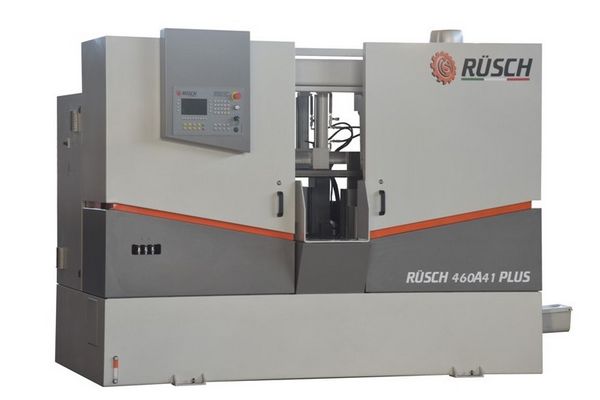

The Rüsch 460A41plus, is a 2 coloumns automatic bandsaw machine The feeding carriage and the saw head are acted by an electric motor and a ballscrew.

  • New advanced  RÜSCH CNC®.
  • Grafic touchscreen display 10″
  • AUTOSAW management of the cutting parameters. You only have to insert the material type shape and size.
  • Machine stops if blade broken.
  • The hydraulic pump is turned off is the machine is idle.
  • Blade deviation detector.
  • Steplessly blade speed change with a vector inverter.
  • Vise pressure regulation
  • Powered swarf conveyor
  • Screw type swarf conveyor with variable speed
  • Powered blade cleaning brush
  • Coolant tank inside the machine base
  • Blade downfeed and carriage feed actuated by ballscrew and electric motor
TECHNICAL DATA
tecapton90  460 mm temotlama  4 kw – 5 kw OPT.
 tecapqua90  460 mm temotoil 0.75 kw
 tecapret90  460 x 460h mm temoth2o 0.40 kw
corsa carro 620 mm tepeso 3000 kg
rip corsa carro n° 99 tedimensioni 1700 x 3100 x 2150h mm
 teserbh2o 150 l tetensione 24 V – 400 V
teserboil 25 l tedimlama 5250 x 41 x 1.3 mm
tevellama 20 – 120 m/min. http://www.rusch.eu/wp-content/uploads/2015/03/tealtbanco.png 860 mm
tediamvolani 500 mm tecolore RAL 7035 – RAL 7037



Options:

  • Rollerbeds 1000mm 2000mm 3000mm
  • Plates between rolls kit for rollerbeds.
  • Coolant collector for rollerbeds.
  • Vertical rolls for rollerbeds.
  • Bundle vise.
  • Additional swarf conveyor.
  • Zero detect laser.
  • Spary mist.
