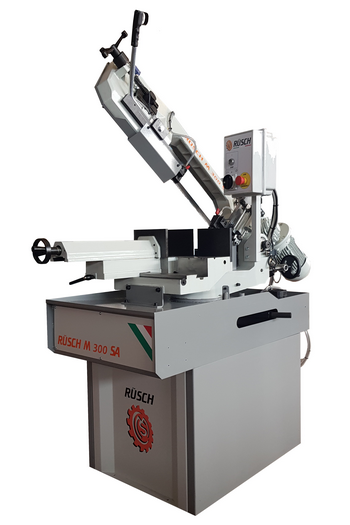

The Rüsch M300SA, is a mitre cutting semi-automatic bandsaw with hydraulic downfeed regulator. It can cut from -45° to 60°.

  • Electrowelded base with built-in coolant tank.
  • Cast iron sawhead inclined 30° to reduce the blade torsion, and improving the blade life
  • Wheels use precision bearings
  • Guide arms without vibrations
  • Manual vise with quick-lock lever
  • Blade tensionin og 1200Kg with handwheel
  • Mitre cutting stops at -45°, 0°, 45° 60° and lever to lock the turntable steplessly
  • Hydraulic gravitational downfeed
  • Coolant pump with several nozzles
  • Carbide pads for blade guidance
  • Cleaning blade brush
  • CE electric system. 400Vac power and 24V commands
  • Blade speeds 32m/min and 64m/min switchable from command panel
  • All commands on a single panel
  • CE conformity decalration
  • Included in package: Instruction manual, 1 blade, material stand, stop lenght

OPTIONS:

  • Loading rollerbed 2000mm
  • Unloading rollerbed 2000mm
  • Unloading rollerbed 2000mm with stop lenght
TECHNICAL DATA
tecapton90 250 mm tecapret60sx 120 x 150h mm
tecapqua90 250 mm tevellama 36 – 70 m/min
tecapret90 315 x 170h mm temotlama 0.75 – 1.1 kw
tecapton45dx 220 mm temoth2o 0.06 kw
tecapqua45dx 200 mm tedimlama 2825 x 27 x 0.9 mm
tecapret45dx 210 x 170h mm tetensione 24 V – 400 V
tecapton45sx 220 mm tedimensioni 1350 x 700 x 1500h ( mm )
tecapqua45sx 200 mm tepeso 360 Kg
tecapret45sx 210 x 170h mm tealtbanco 980 mm
tecapton60sx 120 mm tecolore RAL 7035 – RAL 7037
quad 60sx 120 mm
